Portable opthalmoscope -2,5/3,5
-2,5/3,5
of the
"Quickly Find"
line
Portable opthalmoscope OFTA-2,5/3,5 (OFTAd-2,5/3,5) of the series "Quickly Find"

Standard delivery set specification:

Title Quantity in a set
  Portable ophthalmoscope -2,5/3,5  1
      1. Optha-head 1 1
  Portable opthalmoscope -2,5/3,5  1
      1. Ophta-head 2 1
      2. Accumulator handle with an accumulator battery 3 1
      3. Supply power handle 3 1
      4. Charging device 1
      5. Small halogen lamp 5
      6. Spare accumulator battery 1
      7. Safety fuse 2
      8. Portable case 1
      9. Eyebrow-rest 4 1
    10. Operational manual 1

 1  59 dioptres, 100 lx, 6 optical tests
 2  40 dioptres, 100 lx, 4 optical tests, 4 colors
 3  The change to the controlled brightness handle with is possible
 4  On customer request

Assignment

     Portable opthalmoscope -2,5/3,5 provides the examination of the patient's eyeground, lighted by the illuminating system with the ordinary or blue-green light. While carrying out the examination matrix with horizontal scale and concentric circles is projected on the eyeground that allows to estimate escalation of the optic disk, the diameters of large vessels and size of pathological formations as well as to diagnose the presence and absence of central fixation. Round small and mean diaphragms allows to locally illuminate small eyeground sections, representing the greatest interest; fissural diaphragm is intended for estimation of the form characteristics of the eyeground and the iris of the eye and can be used for iridodiagnosis. Blue-green light filter allows increasing contrast while testing vascular tree.

     Eyeground is examined by the doctor through the correction lens of the relevant refraction allowing balancing the ammethropy of the doctor and the patient so that the doctor can see the clear image of the patient's eyeground.

     Complicated optic system of the precision optic elements originally arranged in the microhead (patent ¹ 3083) allows achieving characteristics not possessed by the analogous devices produced by the other countries.

      There are two models of ophthalmoscopes:

- with optical tests adopted in Russia
Type T1Type T2Type T3

- with optical tests adopted in Europe
Type T4Type T5Type T6

      with dioptrical row variance:

Type D1     +12345. . .2526272829 D
-12345. . .252627282930

Type D2     +12345. . .2526272839 D
-12345. . .252627282930

Type D3     +12345. . .2526272829 D
-12345. . .252627282940

      is supplied with set the following types of optical and color tests:

Type T7
      Dioptrical row:

Type D4     +011.523. . .101111.51213. . .151620
-012. . .788.5910. . .1620




Technical specification:

- power source220 V, 50 Hz/autonomous (from the accumulator battery)
- the nickel-cadmium battery resourcenot less than 500 charge/recharge cycles
- illumination at a distance of 200 mmnot less than 80 lx;
- corner size of the illuminated field14,5° ± 3°
- ametropy correction:
for and       within limits of -30 to +29 dioptres (step 1 dioptre) or -30 to +39 dioptres (step 1 dioptre) or -40 to +29 dioptres (step 1 dioptre);
for       within limits of -20 to +20 dioptres;
- number of interchangeable optical tests, projected on the patient's eye ground (grid, diaphragms, slit, light filter)6
- power consumednot more than 100 W
- weight of the device
0.4 kg;
- dimensions of the case250x140x60 mm.
- guarantee period18 months
- service support after the end of the period of the garantee (on the separate agreement)up to 5 years

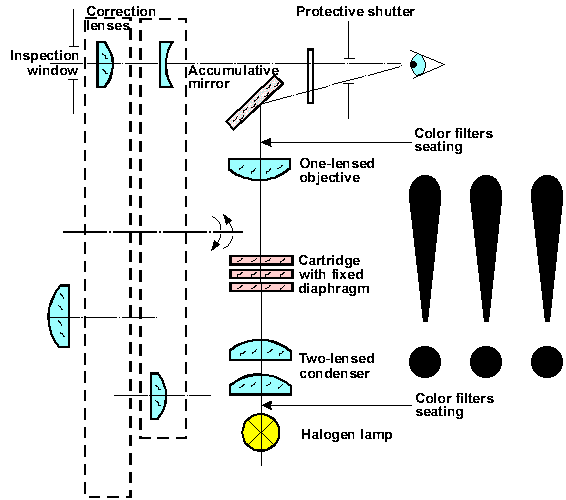

Optical scheme of the opthalmoscope -2,5/3,5 - Patent of the Russian Federation No 3083 of 06.21.95




Opthalmoscope is included in the following medical sets of the "Quickly Find" line:
