RPA 'Ecomed', 129090, Russia, Moscow, POB no. 87, tel. 963-11-22, tel./fax 963-05-97, email: ecomednpo@mtu-net.ru, site: www.npoecomed.com

Fibro-optical urethroscop
-2,5/3,5
of the
"Quickly Find"
line - standard

Patent No. 2119294 of 05.22.97 of the Russian Federation

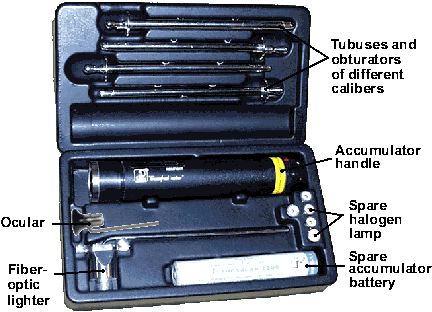

 Fibro-optical urethroscope YPBO-2,5/3,5 of the "Quickly Find" line - standard
Registration certificate
No. 29/14041199/0414-00		 Certificate of conformance
No. POCC RU.M02.Â08291


Standard delivery set specification:

Title Quantity in a set
      1. Fiber-optical urethro-head male or female 1
      2. Tubuses and obturators MALE and FEMALE with calibers of the tubes in accordance with the Sharier scale 18, 21, 24, 27, 36  4
      3. Accumulator handle PA-3,5 (PA-2,5) with an accumulator battery 1
      4. Supply power handle 1 1
      5. Charging device -3,5 (-2,5) 1 1
      6. Small halogen lamp -3,5/2,5 (-2,5/2,5) 3
      7. Spare accumulator battery 3-1,2-1 (2-1,2-1) 1 2
      8. Safety fuse -1-0,25 1 2
      9. Ocular 1
    10. Cotton wool holder 1
    11. Portable case 1
    12. Operational manual 1

 1  when the unit with accumulator battery (R14, A, C type) power supply is ordered this part is omitted from the delivery.

The presence and quantity of any foregoing parts are optional for a Customer.

Assignment

     Urethroscope -2.5/3.5 is used for visual examination, diagnostics and treatment of deseases of the inner surface of urethra in clinic and polyclinic institutions, in units with bedfast patient and in ambulance, for family doctors and in military, as well as disaster, medicine. A compact bag with a device for autonomous usage has a shoulder belt, a handle and a waist loop. Regulatory elements of the device are disposed comfortably for being handled with one hand. Obturators are intended to secure introduction of tubus into urethra. After the introduction of tubus obturator is taken out, a fiber light conductor is put into the tubus, the light is turned on and the examination of a patient is being conducted.

     A fibre light conductor used allows to exclude the heating of tubus and to localize lighting in the working area. The light diameter of the fibre light conductor is 3 mm.

     Changeable obturators and tubuses are high-resistant to corrosion and resistant to effect of biological liquids and tissue excretions, they are not toxic. They are sterilised in cold active solutions using any of non-temperaure method according to OCT-4221-2-85.

Technical specification:
